ALFA TRUCK — lighting the way to the future

Side position light controller „SM1 flasher” two channels 1141.6 DOUBLE AR

PreviousNext

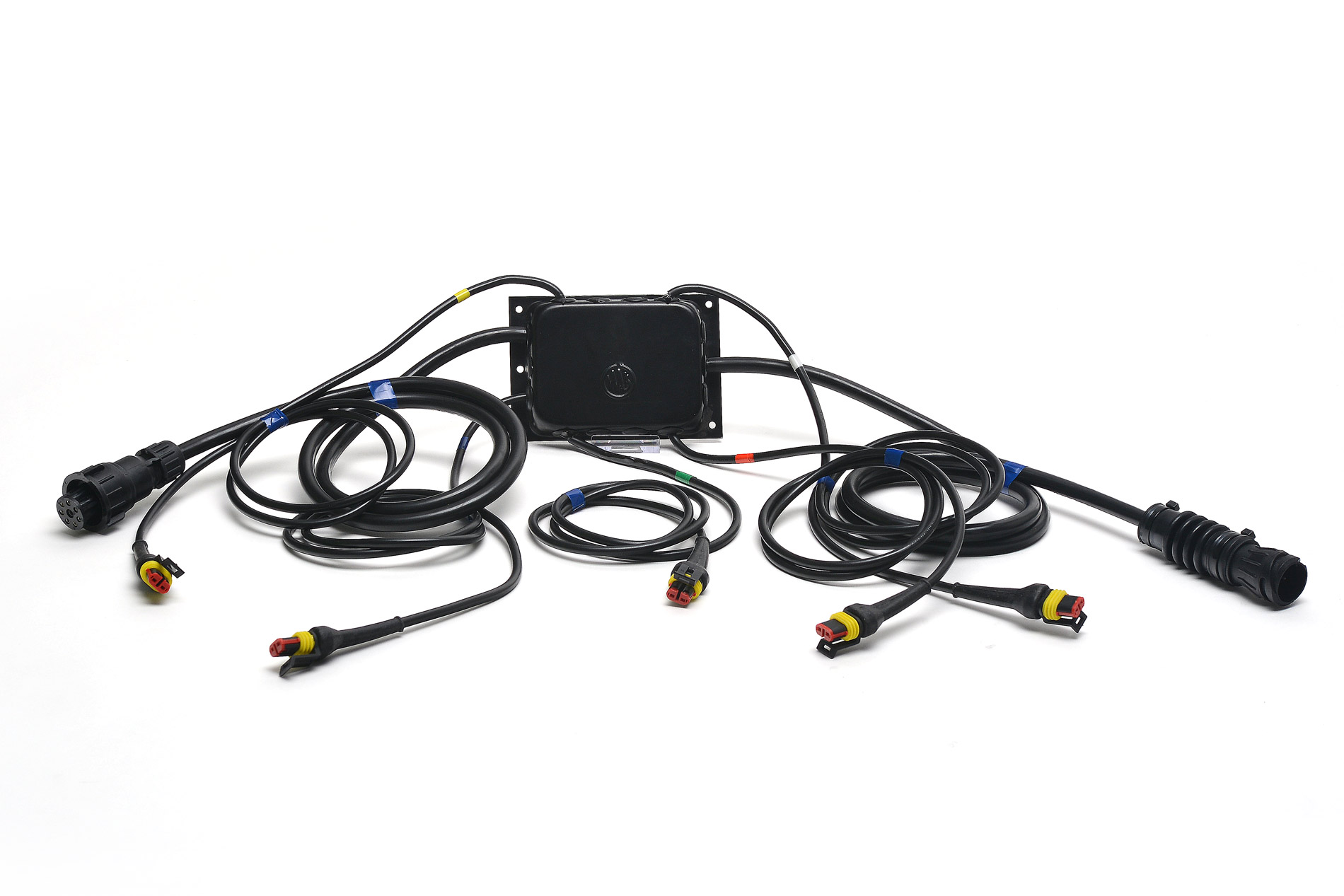

Side position light controller „SM1 flasher” two channels 1141.6 DOUBLE AR

Part no.: 11416-DOUBLE-AR

WAS

Schlemmer, Superseal, Universal, 12V-24V, 20. Functions: input cable "in" - channel 1 yly-s 3x0,75mm², input cable "in" - channel 2 yly-s 3x0,75mm², input cable „in„ - channel 1 and 2 yly-s 7x0,75mm² + 1x1mm² + connector schlemmer (f), output cable „out” yly-s 7x0,75mm² + 1x1mm² + connector schlemmer (m), control cable - channel 1 yly-s 2x0,75mm², control cable - channel 1 yly-sp 2x1,5mm² + connector dc jeager, control cable - channel 1 yly-s 2x0,75mm² + amp, control cable - channel 2 yly-s 2x0,75mm², przewód sterowania - kanał 2 yly-sp 2x1,5mm² + złącze dc jeager, control cable - channel 2 yly-s 2x0,75mm² + amp, cable „no flash”- channel 1 yly-s 2x0,75mm², cable „no flash”- channel 2 yly-s 2x0,75mm², cable „no flash” - channel 1 yly-sp 2x1,5mm² + connector dc jeager, cable „no flash” - channel 2 yly-sp 2x1,5mm² + connector dc jeager, cable „no flash” - channel 1 yly-s 2x0,75mm² + amp, cable „no flash” - channel 2 yly-s 2x0,75mm² + amp, cable for reversing light yly-s 2x0,75mm² + amp.

On request

Price on request

Article

11411-DOUBLE1141.1 DOUBLE11411-DOUBLE-NF1141.1 DOUBLE NF11412-DOUBLE1141.2 DOUBLE11412-DOUBLE-NF1141.2 DOUBLE NF11414-DOUBLE1141.4 DOUBLE11414-DOUBLE-NF1141.4 DOUBLE NF11416-DOUBLE1141.6 DOUBLE11416-DOUBLE-AR1141.6 DOUBLE AR11416-DOUBLE-NF1141.6 DOUBLE NF

Supplied to order. The manager will confirm the price and lead time.

Share
Print
Delivery in 2–9 days
Working days from order to delivery
24-month warranty
12 months for businesses
14-day returns
For private customers across the EU
Invoice for companies
0% VAT with a valid EU VAT number

Description

Side position light controller „SM1 flasher” two channels 1141.6 DOUBLE AR. Specification: cable / wires — Schlemmer, Superseal, mounting side — Universal, operating voltage — 12V-24V, pieces in the box — 20. Functions: input cable "in" - channel 1 yly-s 3x0,75mm², input cable "in" - channel 2 yly-s 3x0,75mm², input cable „in„ - channel 1 and 2 yly-s 7x0,75mm² + 1x1mm² + connector schlemmer (f), output cable „out” yly-s 7x0,75mm² + 1x1mm² + connector schlemmer (m), control cable - channel 1 yly-s 2x0,75mm², control cable - channel 1 yly-sp 2x1,5mm² + connector dc jeager, control cable - channel 1 yly-s 2x0,75mm² + amp, control cable - channel 2 yly-s 2x0,75mm², przewód sterowania - kanał 2 yly-sp 2x1,5mm² + złącze dc jeager, control cable - channel 2 yly-s 2x0,75mm² + amp, cable „no flash”- channel 1 yly-s 2x0,75mm², cable „no flash”- channel 2 yly-s 2x0,75mm², cable „no flash” - channel 1 yly-sp 2x1,5mm² + connector dc jeager, cable „no flash” - channel 2 yly-sp 2x1,5mm² + connector dc jeager, cable „no flash” - channel 1 yly-s 2x0,75mm² + amp, cable „no flash” - channel 2 yly-s 2x0,75mm² + amp, cable for reversing light yly-s 2x0,75mm² + amp. In the box: 20 pcs.

Specifications

cable / wiresSchlemmer, Superseal
mounting sideUniversal
operating voltage12V-24V
input cable "IN" - channel 1 YLY-S 3x0,75mm²yes
input cable "IN" - channel 2 YLY-S 3x0,75mm²yes
input cable „IN„ - channel 1 and 2 YLY-S 7x0,75mm² + 1x1mm² + connector Schlemmer (F)yes
output cable „OUT” YLY-S 7x0,75mm² + 1x1mm² + connector Schlemmer (M)yes
control cable - channel 1 YLY-S 2x0,75mm²yes
control cable - channel 1 YLY-Sp 2x1,5mm² + connector DC Jeageryes
control cable - channel 1 YLY-S 2x0,75mm² + AMPyes
control cable - channel 2 YLY-S 2x0,75mm²yes
przewód sterowania - kanał 2 YLY-Sp 2x1,5mm² + złącze DC Jeageryes
control cable - channel 2 YLY-S 2x0,75mm² + AMPyes
cable „NO FLASH”- channel 1 YLY-S 2x0,75mm²yes
cable „NO FLASH”- channel 2 YLY-S 2x0,75mm²yes
cable „NO FLASH” - channel 1 YLY-Sp 2x1,5mm² + connector DC Jeageryes
cable „NO FLASH” - channel 2 YLY-Sp 2x1,5mm² + connector DC Jeageryes
cable „NO FLASH” - channel 1 YLY-S 2x0,75mm² + AMPyes
cable „NO FLASH” - channel 2 YLY-S 2x0,75mm² + AMPyes
cable for reversing light YLY-S 2x0,75mm² + AMPyes
pieces in the box20

Reviews

No reviews yet

Warranty

24 months for private customers12 months for business customers

Tags

Side position light controller „SM1 flasher” two channels 1141.6 DOUBLE AR
