Side position light controller „SM1 flasher” two channels 1141.1 DOUBLE NF SM1-FLASHER-2-CHANNELS

PreviousNext

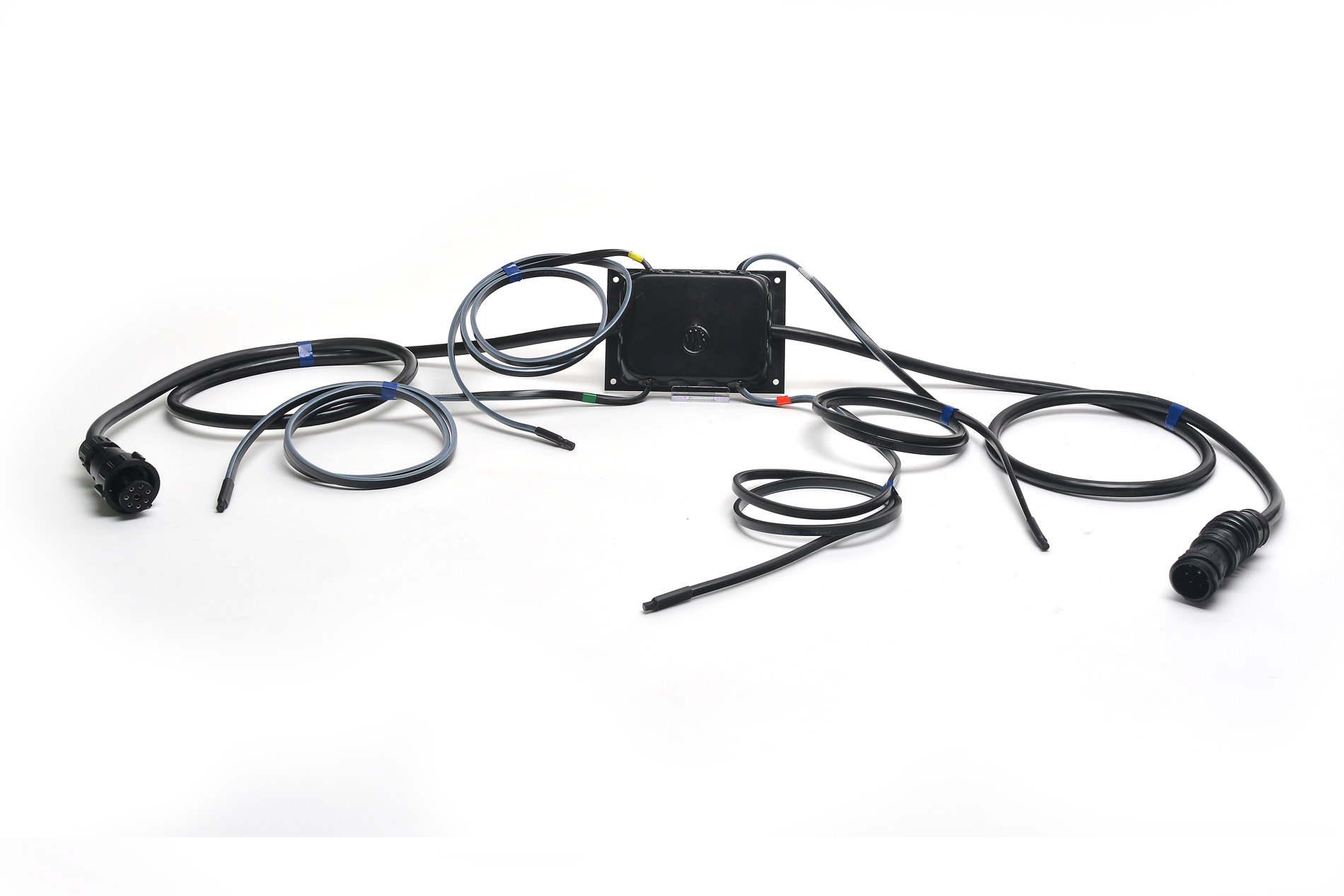

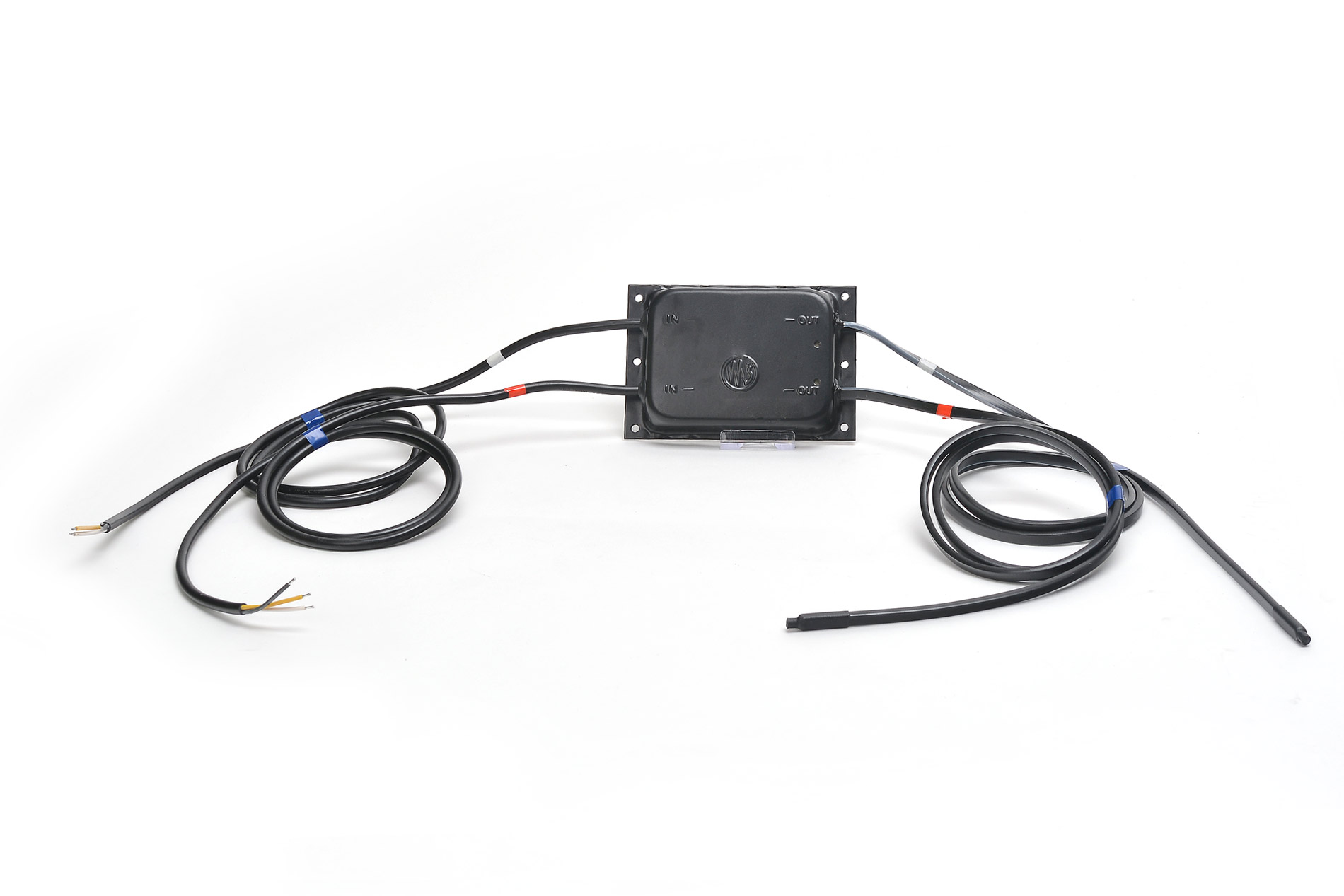

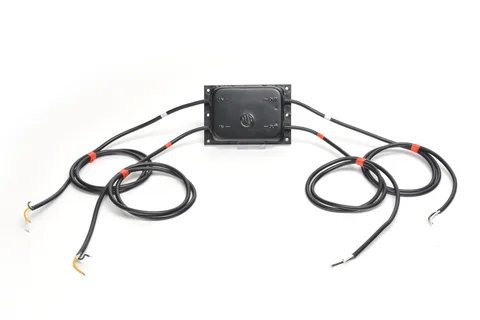

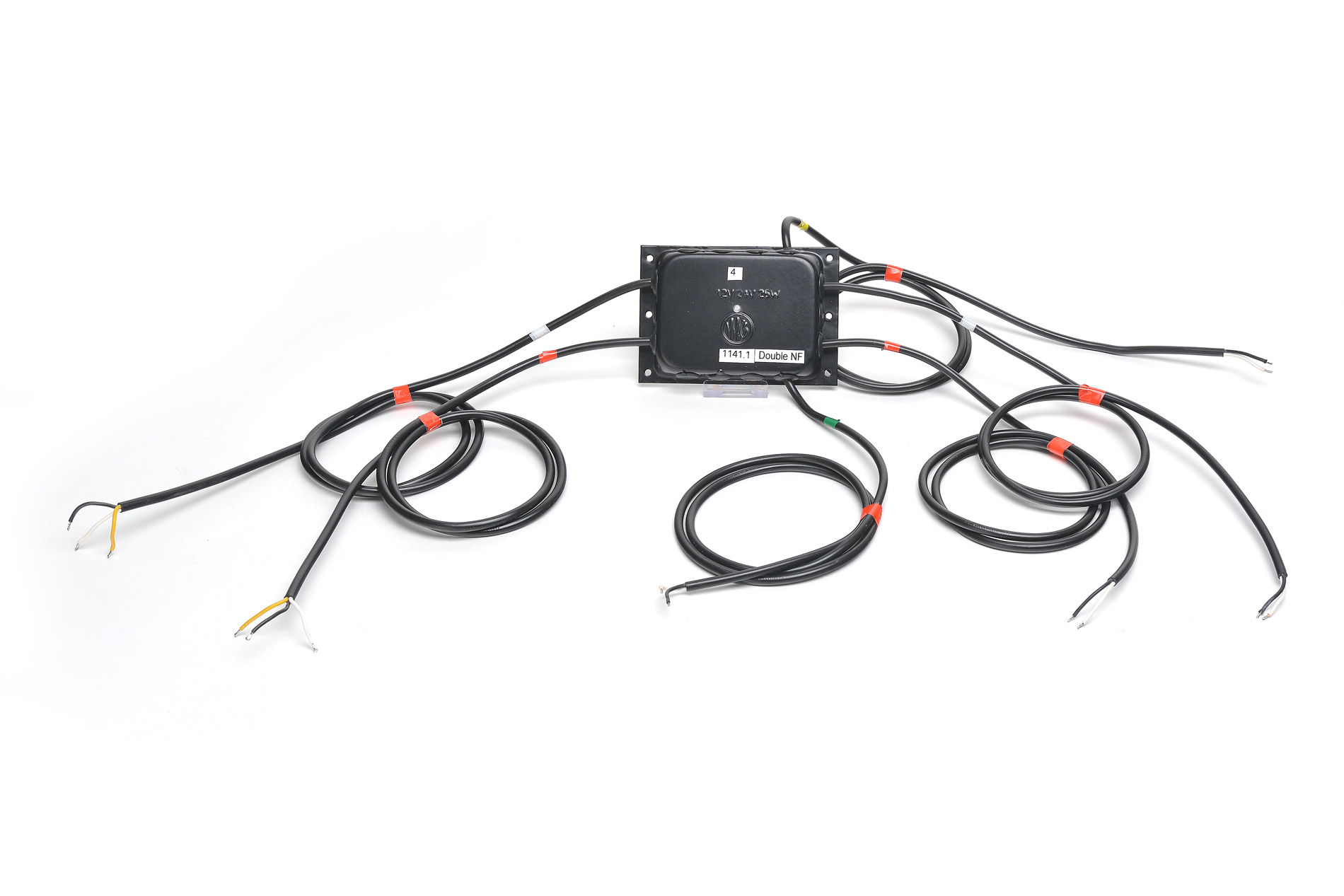

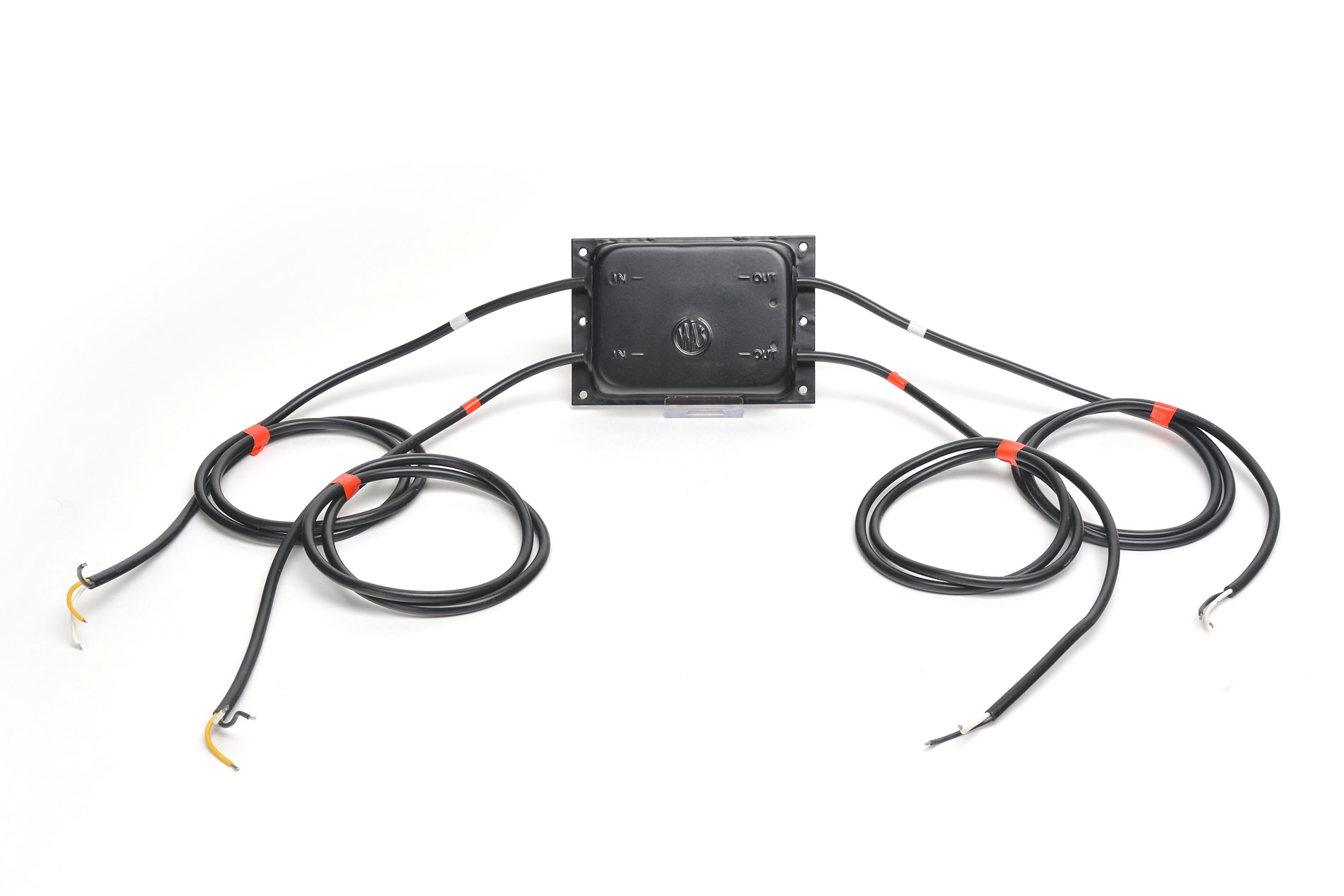

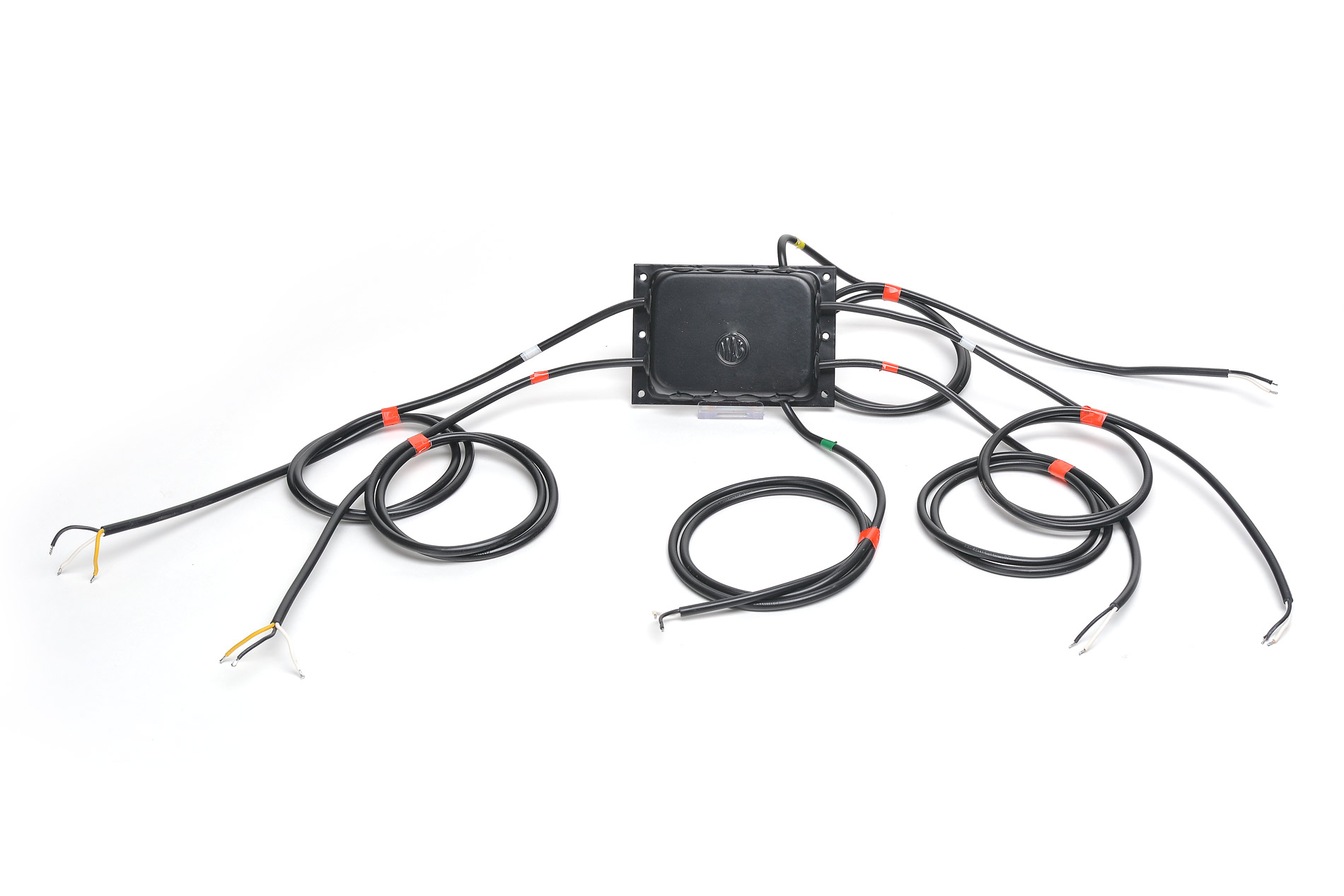

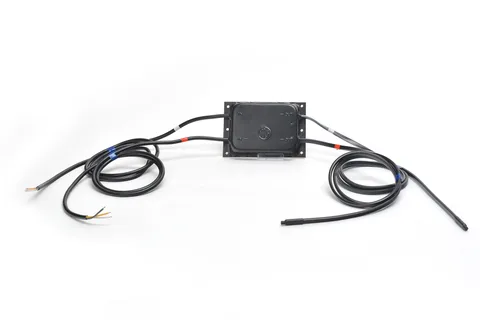

Side position light controller „SM1 flasher” two channels 1141.1 DOUBLE NF SM1-FLASHER-2-CHANNELS
1 / 5

Part no.: SM1-FLASHER-2-CHANNELS

WAS

Universal, 12V-24V, 20. Functions: input cable "in" - channel 1 yly-s 3x0,75mm², input cable "in" - channel 2 yly-s 3x0,75mm², input cable „in„ - channel 1 and 2 yly-s 7x0,75mm² + 1x1mm² + connector schlemmer (f), output cable „out” yly-s 7x0,75mm² + 1x1mm² + connector schlemmer (m), control cable - channel 1 yly-s 2x0,75mm², control cable - channel 1 yly-sp 2x1,5mm² + connector dc jeager, control cable - channel 1 yly-s 2x0,75mm² + amp, control cable - channel 2 yly-s 2x0,75mm², przewód sterowania - kanał 2 yly-sp 2x1,5mm² + złącze dc jeager, control cable - channel 2 yly-s 2x0,75mm² + amp, cable „no flash”- channel 1 yly-s 2x0,75mm², cable „no flash”- channel 2 yly-s 2x0,75mm², cable „no flash” - channel 1 yly-sp 2x1,5mm² + connector dc jeager, cable „no flash” - channel 2 yly-sp 2x1,5mm² + connector dc jeager, cable „no flash” - channel 1 yly-s 2x0,75mm² + amp, cable „no flash” - channel 2 yly-s 2x0,75mm² + amp, cable for reversing light yly-s 2x0,75mm² + amp.

On request

Price on request

Article: choose a version

11411-DOUBLE1141.1 DOUBLE11411-DOUBLE-NF1141.1 DOUBLE NF11412-DOUBLE1141.2 DOUBLE11412-DOUBLE-NF1141.2 DOUBLE NF11414-DOUBLE1141.4 DOUBLE11414-DOUBLE-NF1141.4 DOUBLE NF11416-DOUBLE1141.6 DOUBLE11416-DOUBLE-AR1141.6 DOUBLE AR11416-DOUBLE-NF1141.6 DOUBLE NF
Share
Print
Delivery in 2–9 days
Working days from order to delivery
24-month warranty
12 months for businesses
14-day returns
For private customers across the EU
Invoice for companies
0% VAT with a valid EU VAT number

Description

Side position light controller „SM1 flasher” two channels 1141.1 DOUBLE NF SM1-FLASHER-2-CHANNELS. Specification: mounting side — Universal, operating voltage — 12V-24V, pieces in the box — 20. Functions: input cable "in" - channel 1 yly-s 3x0,75mm², input cable "in" - channel 2 yly-s 3x0,75mm², input cable „in„ - channel 1 and 2 yly-s 7x0,75mm² + 1x1mm² + connector schlemmer (f), output cable „out” yly-s 7x0,75mm² + 1x1mm² + connector schlemmer (m), control cable - channel 1 yly-s 2x0,75mm², control cable - channel 1 yly-sp 2x1,5mm² + connector dc jeager, control cable - channel 1 yly-s 2x0,75mm² + amp, control cable - channel 2 yly-s 2x0,75mm², przewód sterowania - kanał 2 yly-sp 2x1,5mm² + złącze dc jeager, control cable - channel 2 yly-s 2x0,75mm² + amp, cable „no flash”- channel 1 yly-s 2x0,75mm², cable „no flash”- channel 2 yly-s 2x0,75mm², cable „no flash” - channel 1 yly-sp 2x1,5mm² + connector dc jeager, cable „no flash” - channel 2 yly-sp 2x1,5mm² + connector dc jeager, cable „no flash” - channel 1 yly-s 2x0,75mm² + amp, cable „no flash” - channel 2 yly-s 2x0,75mm² + amp, cable for reversing light yly-s 2x0,75mm² + amp.

Specifications

mounting sideUniversal
operating voltage12V-24V
input cable "IN" - channel 1 YLY-S 3x0,75mm²yes
input cable "IN" - channel 2 YLY-S 3x0,75mm²yes
input cable „IN„ - channel 1 and 2 YLY-S 7x0,75mm² + 1x1mm² + connector Schlemmer (F)yes
output cable „OUT” YLY-S 7x0,75mm² + 1x1mm² + connector Schlemmer (M)yes
control cable - channel 1 YLY-S 2x0,75mm²yes
control cable - channel 1 YLY-Sp 2x1,5mm² + connector DC Jeageryes
control cable - channel 1 YLY-S 2x0,75mm² + AMPyes
control cable - channel 2 YLY-S 2x0,75mm²yes
przewód sterowania - kanał 2 YLY-Sp 2x1,5mm² + złącze DC Jeageryes
control cable - channel 2 YLY-S 2x0,75mm² + AMPyes
cable „NO FLASH”- channel 1 YLY-S 2x0,75mm²yes
cable „NO FLASH”- channel 2 YLY-S 2x0,75mm²yes
cable „NO FLASH” - channel 1 YLY-Sp 2x1,5mm² + connector DC Jeageryes
cable „NO FLASH” - channel 2 YLY-Sp 2x1,5mm² + connector DC Jeageryes
cable „NO FLASH” - channel 1 YLY-S 2x0,75mm² + AMPyes
cable „NO FLASH” - channel 2 YLY-S 2x0,75mm² + AMPyes
cable for reversing light YLY-S 2x0,75mm² + AMPyes
pieces in the box20
