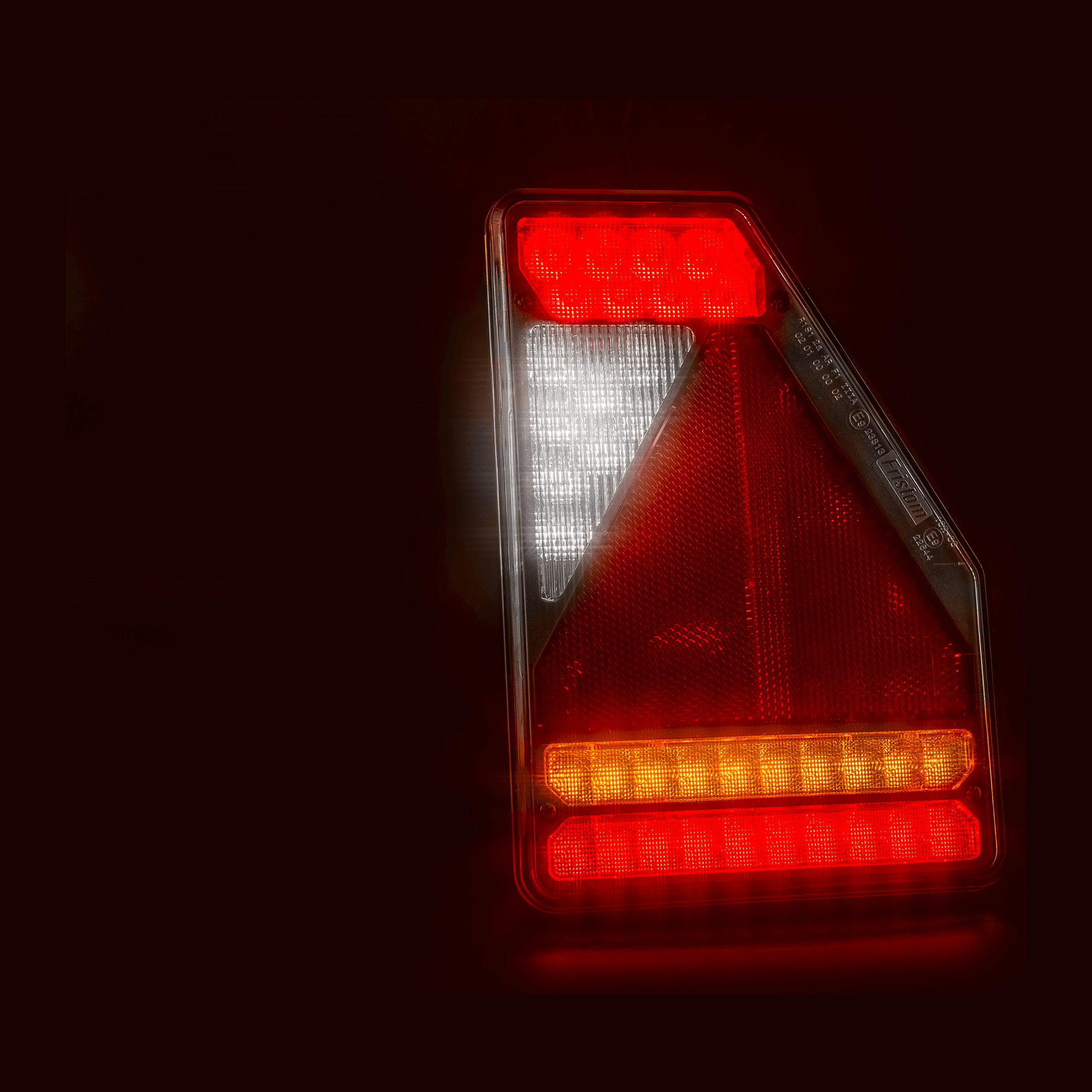

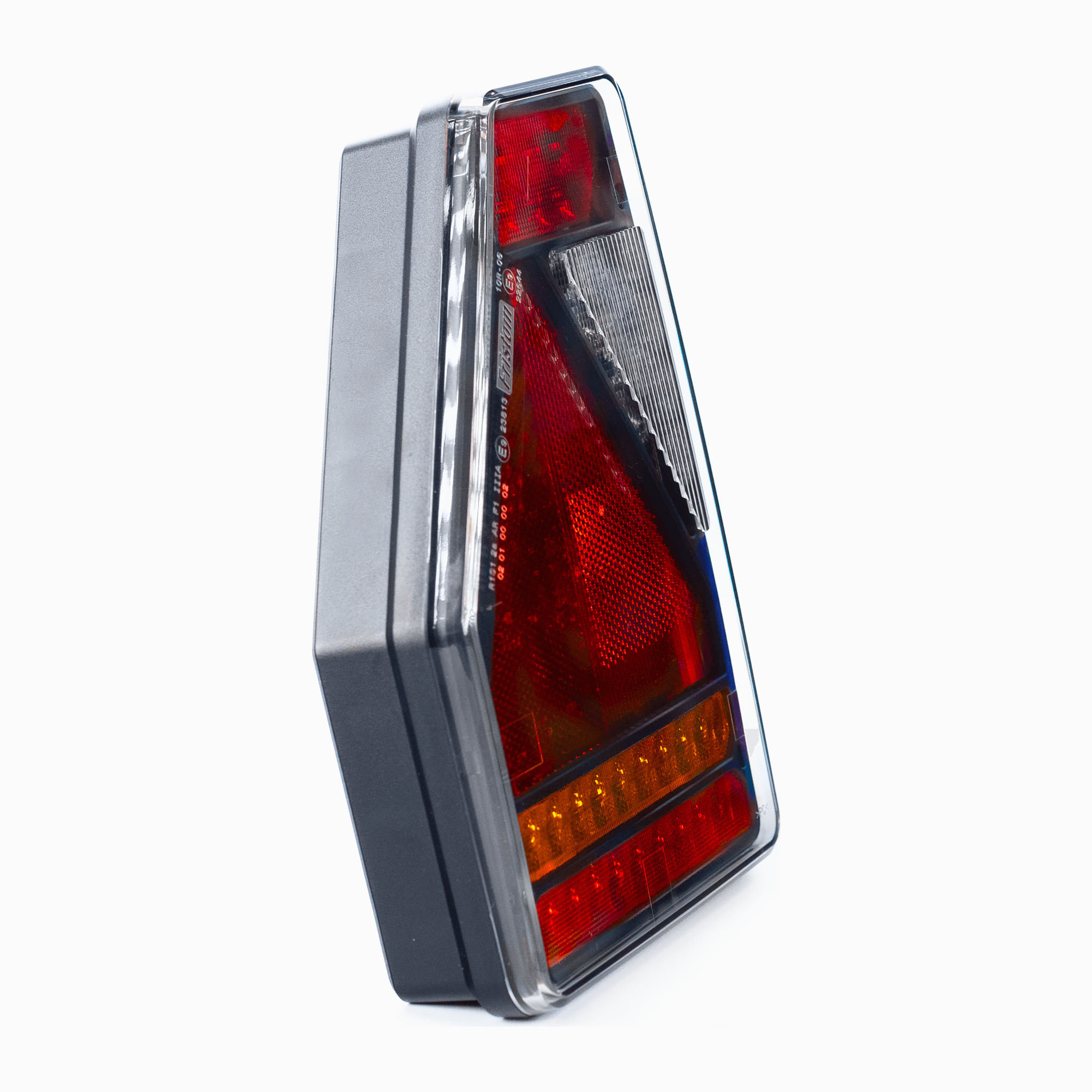

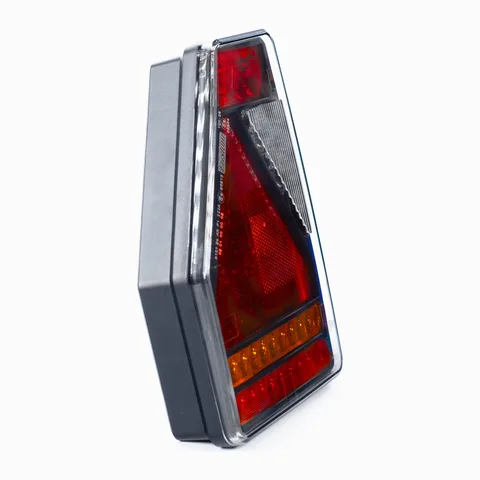

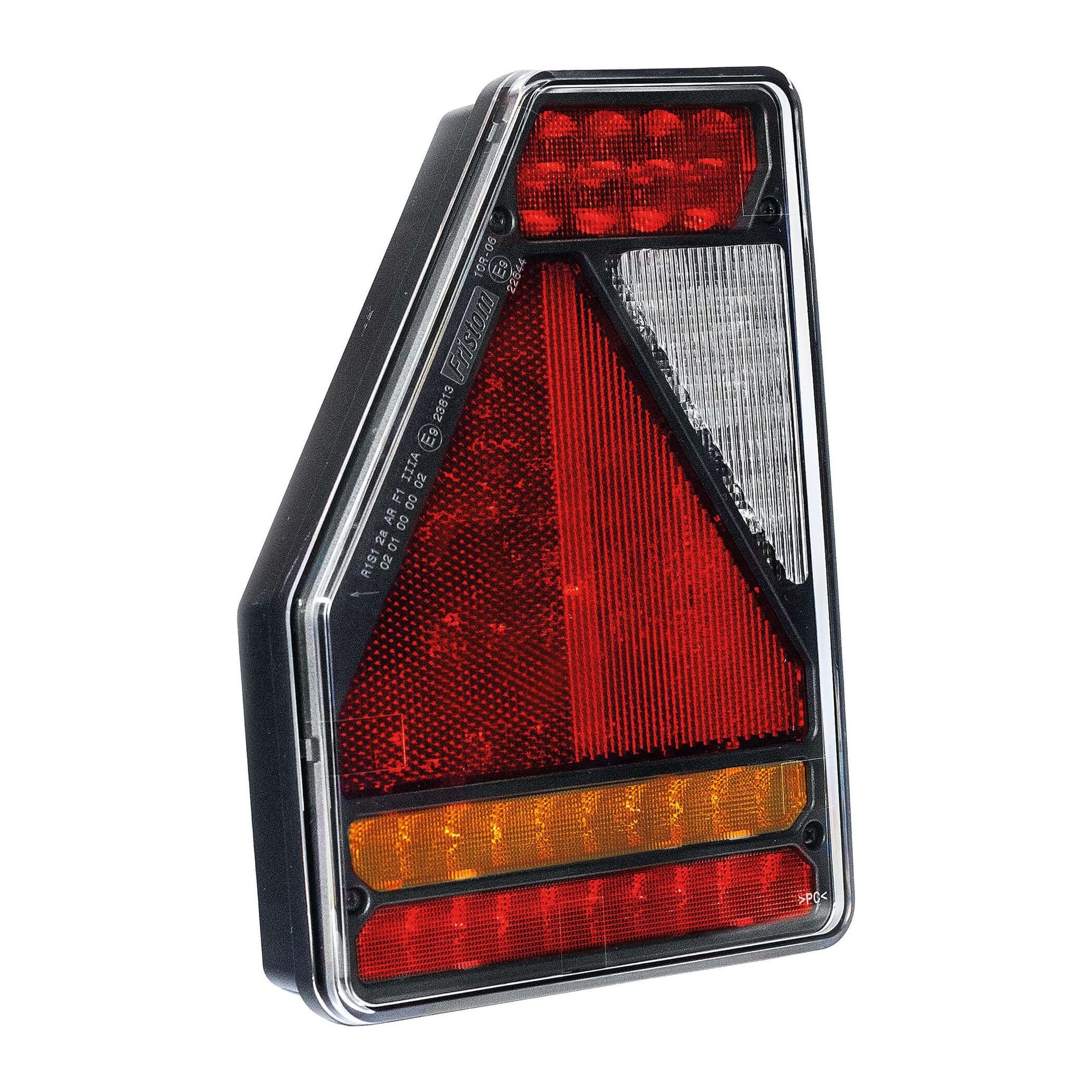

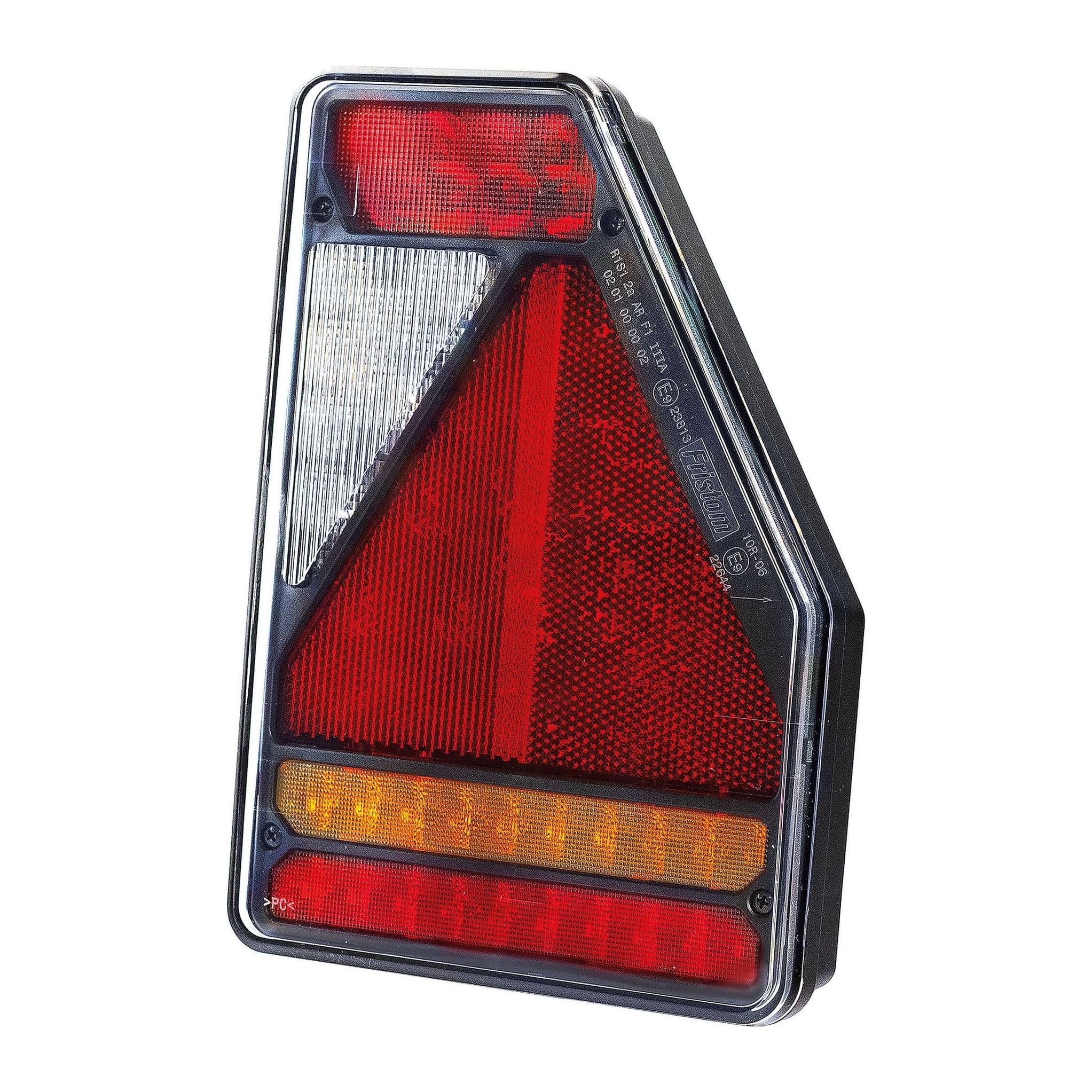

Rear lamp FT-277
Part no.: FT-277
Fristom
Universal LED rear lamp left 12-30V with reflector triangle, 6-functional STOP / POSITION / INDICATOR / FOG / REVERSING, without number plate light., 1 m wire loom.
On request
Price on request
Article: choose a version

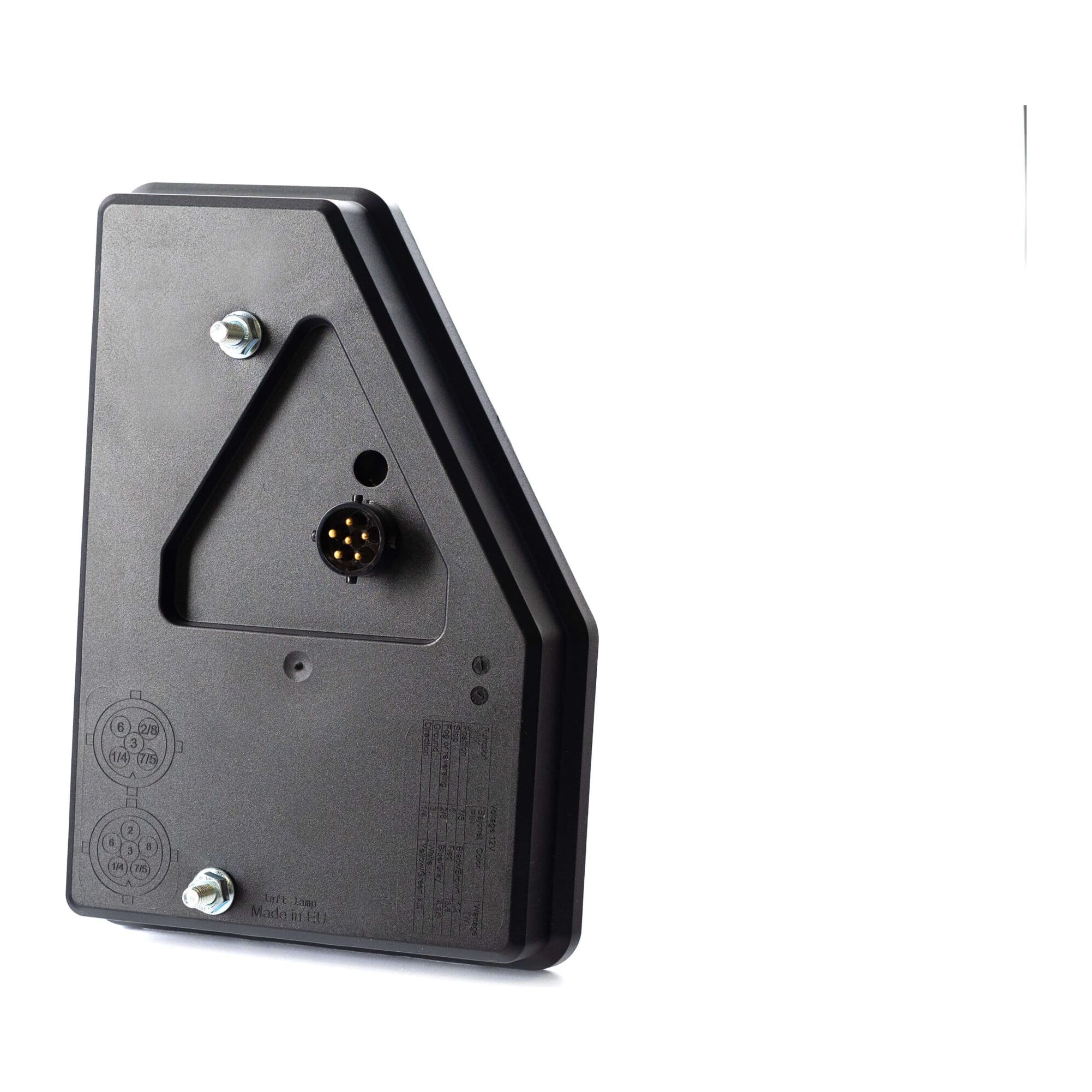

FT-277 L LEDleftFT-277 L LED BAJONET 6PINleft, bayonet connector, 6PINFT-277 L LED O SPKPM BAJONET 5PINleft, bayonet connector, O, SPKPM, 5PINFT-277 L LED SPKPM BAJONET 5PINleft, bayonet connector, SPKPM, 5PINFT-277 P LEDrightFT-277 P LED BAJONET 6PINright, bayonet connector, 6PINFT-277 P LED O SPKCOF BAJONET 5PINright, bayonet connector, O, SPKCOF, 5PINFT-277 P LED SPKCOF BAJONET 5PINright, bayonet connector, SPKCOF, 5PIN
- Delivery in 2–9 days
- Working days from order to delivery
- 24-month warranty
- 12 months for businesses
- 14-day returns
- For private customers across the EU
- Invoice for companies
- 0% VAT with a valid EU VAT number
Description
6-functional universal LED lamp – low power consumption
european homologation E9
ElectroMagnetic Compatibility (EMC) homologation
shock-resistance – PC lampshade
reverse polarity protection system
Degré de protection IP68 – totalement étanche à la poussière et haute résistance à l'eau.
The 12-30V voltage range allows the lamps to be used in both standard vehicles and trailers, as well as in heavier agricultural or construction machines
CANBUS version
FT-277 LED O BAJONET 6 PIN
has a voltage of 12V
Specifications
| Voltage | 12–30 V |
|---|---|
| Functions | 6 |
| Protection rating | IP68 |
| Cable length | 1 m |
| rear running light | 12 V0,05 A, 0,5 W24 V0,05 A, 1,2 W |
| STOP light | 12 V0,2 A, 2,3 W24 V0,2 A, 2,3 W |
| indicator | 12 V0,3 A, 3,6 W24 V0,2 A, 4,2 W |
| reversing light | 12 V0,13 A, 1,6 W24 V0,1 A, 3 W |
| fog light | 12 V0,25 A, 2,7 W24 V0,2 A, 4,2 W |
Description
6-functional universal LED lamp – low power consumption
european homologation E9
ElectroMagnetic Compatibility (EMC) homologation
shock-resistance – PC lampshade
reverse polarity protection system
Degré de protection IP68 – totalement étanche à la poussière et haute résistance à l'eau.
The 12-30V voltage range allows the lamps to be used in both standard vehicles and trailers, as well as in heavier agricultural or construction machines
CANBUS version
FT-277 LED O BAJONET 6 PIN
has a voltage of 12V
Specifications
| Voltage | 12–30 V |
|---|---|
| Functions | 6 |
| Protection rating | IP68 |
| Cable length | 1 m |
| rear running light | 12 V0,05 A, 0,5 W24 V0,05 A, 1,2 W |
| STOP light | 12 V0,2 A, 2,3 W24 V0,2 A, 2,3 W |
| indicator | 12 V0,3 A, 3,6 W24 V0,2 A, 4,2 W |
| reversing light | 12 V0,13 A, 1,6 W24 V0,1 A, 3 W |
| fog light | 12 V0,25 A, 2,7 W24 V0,2 A, 4,2 W |
